Description

AT A GLANCE

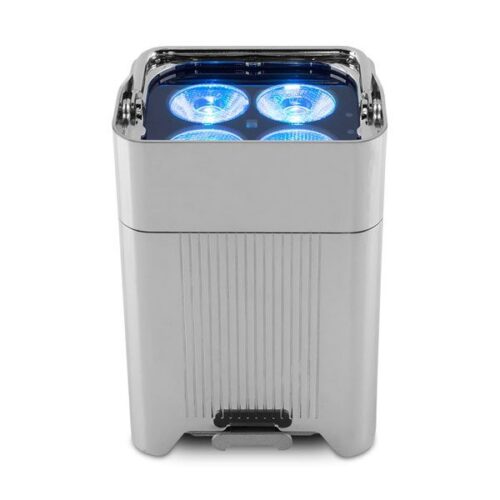

A completely wireless IP65 rated battery powered up-light with four high powered quad colored RGBA LEDs that is controlled by W-DMX or IR remote.

Chrome exterior for blending into its surroundings.

Ships with 6 slot drop in charging case for easy storage and re-charging of the battery.

8 hours of operation at full and a quick 5 hours charging time for frequent use.

Built in automated programs recallable by IR, WDMX or manually.

M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment.

SPECIFICATIONS
OPTICAL
Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).Beam Angle: 10.8°Field Angle: 19.6°Illuminance (19.6°): 988 lux @ 5 mPWM Frequency: 1200 Hz
DYNAMIC EFFECTS
Color Macros: 5 macrosDimmer: ElectronicShutter/Strobe: ElectronicStrobe Rate: 0 to 24 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Modes: 4Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)Weight (single unit) 7.4 LB (3.4 kg)Weight (charging case): 103.6 lb (47 kg)Exterior Color: ChromeHousing Material: Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCONPower Input: Neutrik® powerCON®Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: W-DMX™, IRCDMX Channels: 3, 4, 6 or 10Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 5 units @ 120 V: 8 units @ 208 V: 9 units @230 VPower and Current (single unit charging): 48 W, 0.44 A @ 120 V, 60 HzPower and Current (charging case): 318 W, 2.62 A @ 120 V, 60 HzPower and Current (single unit charging): 48 W, 0.25 A @ 208 V, 60 HzPower and Current (charging case): 300 W, 1.51 A @ 208 V, 60 HzPower and Current (single unit charging): 48 W, 0.23 A @ 230 V, 50 HzPower and Current (charging case): 303 W, 1.38 A @ 230 V, 50 Hz
BATTERY
Battery type: Lithium IonRechargeable: YesBattery Charge Time: 5 hoursBattery Life: (all on) 8 hours, (single LED) 20 hoursBattery Power: 14.8 V, 11 Ah
