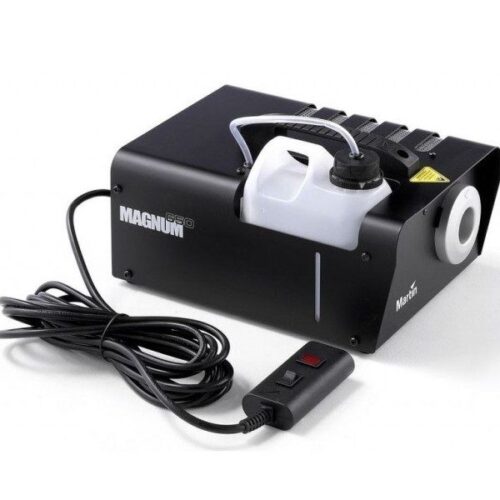

Smoke Machine – Martin Magnum 650

Description

The Magnum 650 offers the perfect boost of dense white fog to enhance every light effect. The fast heat-up time and extended operational period place the Magnum 650 as the clear leader in its class.

FEATURES
Hand-held remote control
160 m³/min fog output
Housing: Steel and aluminum
600 W heat exchanger
7 minute heat-up time
1 liter fluid capacity
Different fluid options for different applications
SPECIFICATIONS
PHYSICAL
Length: 293 mm
Width: 216 mm
Height: 170 mm
Dry weight: 4.2 kg
PERFORMANCE
Max. fog output (approx.): 160 m3 per minute
Max. operating time at full output (approx.): 47 minutes
Warm-up time (approx.): 7 minutes
CONTROL AND PROGRAMMING
Control options: Remote control (supplied)
Remote control features: Manual switch
CONSTRUCTION
Housing: Steel & aluminum
Heat exchanger: 600 W, direct thermal protection
FLUID SYSTEM
Fluid pump: Oscillating piston, high pressure
Onboard fluid capacity: 1 l
Fluid consumption at peak output: 23 ml per minute
INSTALLATION
Orientation: Floor
CONNECTIONS
Remote control: Hard-wired
Power connection: 3-pin IEC male socket
