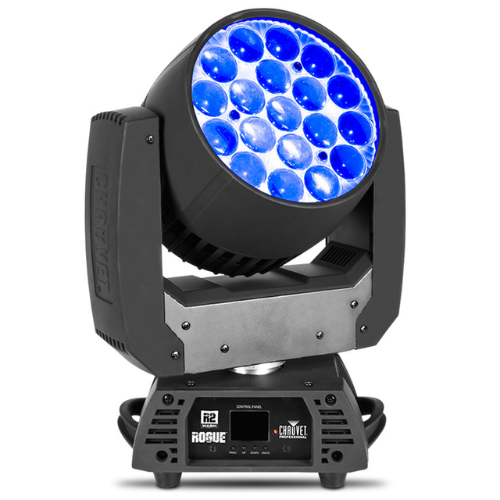

Moving Head – Wash Chauvet Rogue R2
February 8, 2024 11:40 am£40.00 - Daily Price - Weekly Price
Moving head wash fixture. Great workhorse with a 12 to 49 degree beam with amazing colours.
Description
Description
Rogue R2 Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (15 W) RGBW quad-LEDs. A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.
AT A GLANCE
19 RGBW LEDs, 15 W each
5 zones of LED control for pixel mapping control
Unique lens design for excellent color blending
Fast, smooth pan and tilt movement
6 distinct dimming modes for advanced control
3- and 5-pin DMX input/output connections
Omega mounting bracket, fits all Rogue, Next, and Legend fixtures
Omega mounting bracket, fits all Rogue and Maverick
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
SPECIFICATIONS
OPTICAL
Light Source: 19 LEDs (quad-color RGBW) 15 W, (1 A), 50,000 hours life expectancyColor Temperature (range): 2800 to 10000 KBeam Angle: 8° to 30°Field Angle: 12° to 49°Zoom Angle: 12° to 49°Lumens – Source: 8,500Lumens – Output: 5,800Illuminance (12°): 8,650 lux @ 5 mIlluminance (49°): 750 lux @ 5 mPWM Frequency: 1,200 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/230°Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tiltDimmer: ElectronicShutter/Strobe: ElectronicZoom: MotorizedStrobe Rate: 0 to 20 HzStandalone Color Mixing: YesColor Temperature Presets: YesDim Curves: 4Built-in Automated Programs: YesCustomizable Programs: NoRecall Custom Programs: No
CONSTRUCTION / PHYSICAL
Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)Weight: 20.4 lb (9.25 kg)Exterior Color: BlackHousing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCONPower Input: Neutrik powerCONPower Output: Neutrik powerCONData Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMXDMX Channels: 15, 17, 22, 33, 54, or 56Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 VPower and Current: 339 W, 2.95 A @ 120 V, 60 HzPower and Current: 324 W, 1.62 A @ 208 V, 60 HzPower and Current: 324 W, 1.50 A @ 230 V, 50 Hz
