Description

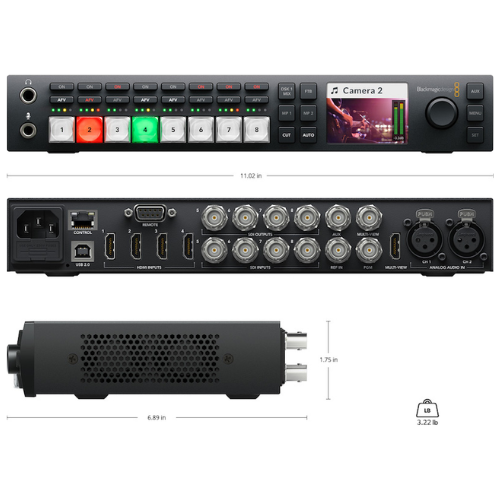

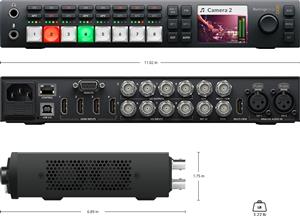

ATEM Television Studio HD Features
4 x 3G-SDI and 4 x HDMI inputs for a total of 8 inputs, all with auto re?sync.
Supports all video formats from SD to 720p, 1080i and 1080p HD up to 60fps.
1 x built in multi view for 8 sources, as well as preview and program.
Built in media pool graphics storage for 20 RGBA stills.
Built in DVE with 3D borders and drop shadow.
Transitions include cut, mix, dip, SMPTE wipes and more.
1 upstream keyer including chroma keyer plus 2 downstream keyers.
1 auxiliary output with front panel aux switching buttons and LCD screen for viewing.
Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
Balanced XLR stereo analog audio inputs .
Internal sources include black, color bars, two color generators and 2 media player outputs.
Ethernet connection for computer connection. Mac and Windows control panel software included.
Compatible with all ATEM Broadcast Panel control panels when hardware panel is required.
Black Burst and HD-Tri-Sync genlock input for integration into large systems.
Compact ? rack unit size is perfect for when in a portable solution is required.
Desktop or rack mountable using the optional Teranex Mini Rack Shelf.
