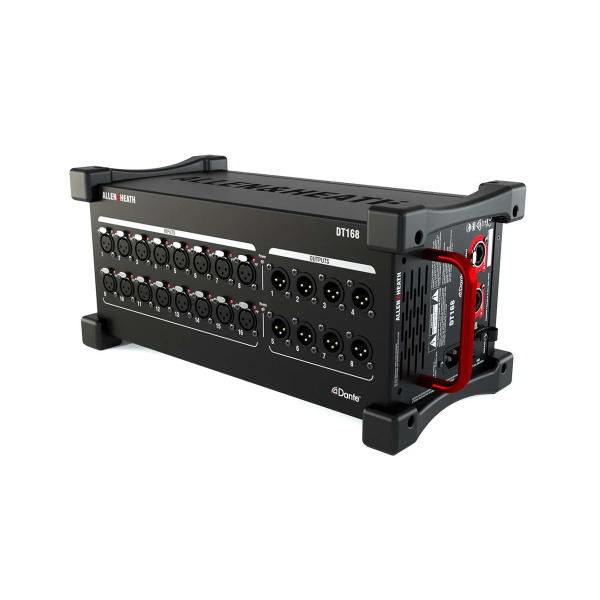

The DT168 is a heavy-duty, portable 96kHz digital expander engineered to supply remote I/O capabilities for Dante-enabled systems, including dLive, Avantis, SQ, Qu, and AHM platforms.
Key Features & Specifications
Audio Format: High-resolution Dante audio expander supporting both 96kHz and 48kHz sample rates
Form Factor: Highly portable stage box configuration featuring protective rubber bumpers and an integrated carrying handle
Analog Inputs: 16 professional XLR microphone preamplifiers, each fitted with dedicated Phantom Power status LEDs
Analog Outputs: 8 XLR line-level outputs
Network Connectivity: Dual locking EtherCon ports for Primary and Secondary Dante connections, supporting either Redundant or Switched operational modes
Preamp Integration: Supports direct gain control straight from dLive, Avantis, AHM-64, and SQ mixing consoles
Third-Party Compatibility: Offers remote preamp adjustment via DT Preamp Control software for external system integration, alongside AES67 compatibility and Dante Domain Manager readiness
Installation Flexibility: Compatible with an optional 19-inch rack-mounting kit
